Modular system to improve street accessibility.

zicla-vectorial-sistema-modular-flujos-trafico

Why the Vectorial® system?

The Vectorial®system transforms urban space and improves accessibility quickly, simply, and reversibly.

It resolves the conflict between cycle lanes and bus stops where the two overlap, allows for the construction of sidewalks or widening of existing sidewalks, and improves the accessibility of bus stops when they are in a vehicle parking area.

Vectorial® system configurations

PLATFORM AS AN EXTENSION OF THE SIDEWALK

A platform as a curb extension aligns the bus stop with the parking lane. Platforms as curb extensions allow buses to stop without making big sideways movements.

configuraciones-vectorial-productos-zicla-plataforma-modular-como-extension-acera

PLATFORM WITH INTEGRATED CYCLE LANE

Platforms with integrated cycle lanes allow bike lane users to safely cross the passenger boarding area when there are no buses at the stop, although bus users will have priority.

configuraciones-vectorial-productos-zicla-plataforma-modular-con-carril-bici-integrado

PLATFORM WITH ACCESS BRIDGE AND INTEGRATED CYCLE PATH

Allows users of the cycle lane to ride behind bus stops. This reduces conflicts between them and buses, and, at the same time, creates a safe waiting area for bus users.
configuraciones-vectorial-productos-zicla-plataforma-modular-con-puente-acceso-carril-bici-integrado

PLATFORM WITH ISLAND CONFIGURATION

This helps to optimize the bus service and improves the accessibility of the bus stop. This configuration eliminates conflicts between buses and cycle lane users. It is the recommended configuration when the space occupied by the bus stop is not attached to the sidewalk.
configuraciones-vectorial-productos-zicla-plataforma-modular-con-configuracion-isla

Customizing the Vectorial®system

The color and surface of the modules making up the Vectorial® system can be customized to adapt to the relevant regulations. The Vectorial® system also allows the integration of street furniture elements, such as canopies, bollards, pole signs, traffic lights, benches, railings, etc.

The Vectorial® system in detail

Modular System

The Vectorial® system is made up of modules that fit together, allowing a wide variety of configurations.

Easy Installation

The modular nature of the Vectorial® system means it can be installed and removed quickly and easily. This property extends life expectancy by allowing parts from one platform to be used to build a new one or to extend an existing platform.

Surfaces

The surface of the Vectorial® system’s main modules and ramps to the road is slip resistant and it could be modified to differentiate it from conventional paving to meet each city’s accessibility requirements.

NON-SLIP SURFACE

zicla-products-vectorial-superficie-antideslizante

WARNING SURFACE

zicla-products-vectorial-superficie-antideslizante

DIRECTIONAL SURFACE

zicla-products-vectorial-superficie-direccional

Curb

The curb is a component of the Vectorial® system designed to distribute the lateral loads transmitted by bus tryes to the entire platform and to ensure the stability and inalterability of the parts installed. Each curb has a large longitudinal retoreflective strip that makes it visible day and night.

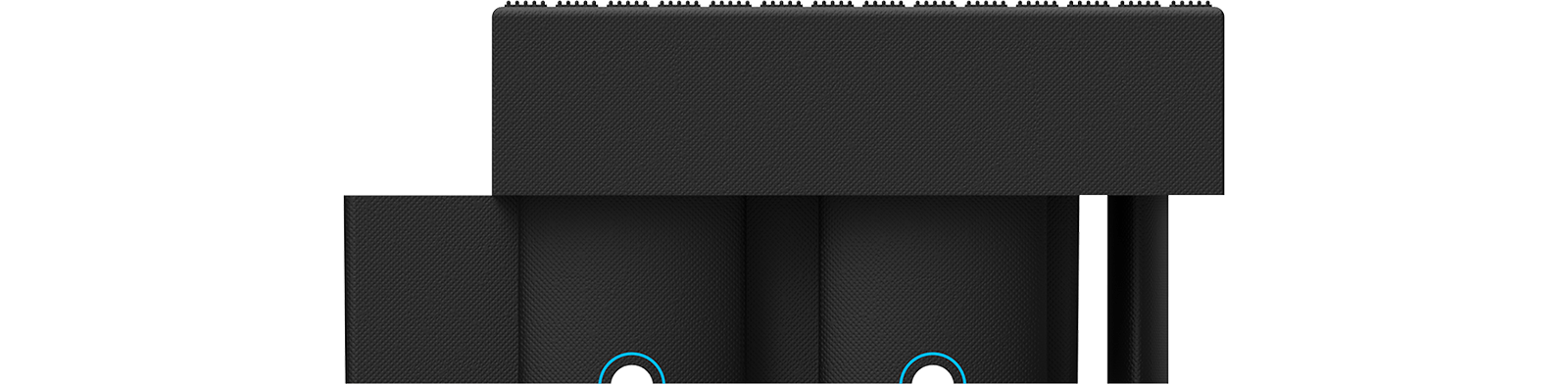

Drainage System

Rainwater or excess cleaning water does not accumulate on the surface of platforms built with Vectorial® system parts because it drains onto the road.

sistema-vectorial-detalles-drenaje-zicla-products-2
sistema-vectorial-detalles-drenaje-zicla-products-1
sistema-vectorial-detalles-drenaje-zicla-products-3

Folding ramps

Ramps to the road allow rainwater to flow freely underneath them. They can be raised to remove the dirt that accumulates under them so the water can flow without obstruction.

sistema-modular-vectorial-zicla-products-rampa-individual-movimiento

Recycled and recyclable materials

The way we work is in line with the circular economy and we focus on the resource cycle following a model based on reusing, repairing, remanufacturing and recovering existing materials and products, as opposed to using virgin materials. We manufacture all our products with recycled and recyclable materials.

Vectorial® | Wire

The modules of the Vectorial® system are made from various mixtures of industrial and post-consumer plastic waste, mainly PVC from the remains of banners, hoses, electrical cable sheathing, out-of-standard batches, etc.

190822_Granza-Materiales-100_CLASSIC_-TRITURADO_T

CARBON FOOTPRINT

Main module

10.7 kg
23 lb 9 oz
8.98 kg of CO2 eq/unit
19 lb 13 oz of CO2 eq/unit

Main module with hinge

11.8 kg
26 lb
9.82 kg of CO2 eq/unit
21 lb 10 oz of CO2 eq/unit
zicla-products-sistema-vectorial-bordillo-frontal-estandar

Front curbs

9.94 kg
21 lb 14 oz
11.85 kg of CO2 eq/unit
26 lb 2 oz of CO2 eq/unit

Right & left curbs

11.2 kg
24 lb 11oz
13.03 kg of CO2 eq/unit
28lb 12 oz of CO2 eq/unit
zicla-products-sistema-vectorial-rampa-acera-estandar

Double ramp to the sidewalk

18.4 kg
40 lb 9 oz
31.74 kg of CO2 eq/unit
69 lb 6 oz of CO2 eq/unit
zicla-products-sistema-vectorial-rampa-acera-individual

Individual ramp to the sidewalk

13.6 kg
29 lb 15 oz

Find out how the Vectorial® system has contributed to improving accessibility and mobility in cities.

Top Vectorial® system videos
